Stainless Steel Torx Screws
Stainless Steel Torx Screws are the fasteners of choice for precision manufacturing and high-end engineering in a wide range of industries due to their unique anti-theft design and superior material properties.
Cold forming with high quality stainless steel 304 or 316 wire, these screws are not only corrosion and temperature resistant, but also offer excellent strength and durability.
Stainless Steel Star Screws
Stainless Steel Star Screws torx Drive Head (also known as star) drive head design, the Torx head provides greater torque transfer capacity than traditional one- or cross-slots, reducing the risk of slippage and damage, and making the fastening process faster, more precise, and less labor intensive.
Torx drive are generally available in two design types, a star type and a star with pin, both of which need to be operated in conjunction with a special tool, effectively preventing unauthorized disassembly, and are therefore also known as stainless steel security screws.
Stainless Steel Torx Screws Thread Types
Depending on the application, Torx stainless steel screws are carefully categorized into wood thread and machine thread.
Stainless Steel Torx Screws Wood Thread
The wood thread is designed for direct drilling into the workpiece, easily realizing self-tapping fixing, it called torx stainless steel self tapping screws, commonly used in the connection of soft materials such as wood and plastic.
Stainless Steel Torx Screws Machine Thread
Machine threads, on the other hand, are customized for pre-punched workpieces and fit snugly into threaded holes, or, if the holes are unthreaded, can be combined with stainless steel nuts and stainless washers for a more secure fastening.
Stainless Steel Torx Screws Head Types

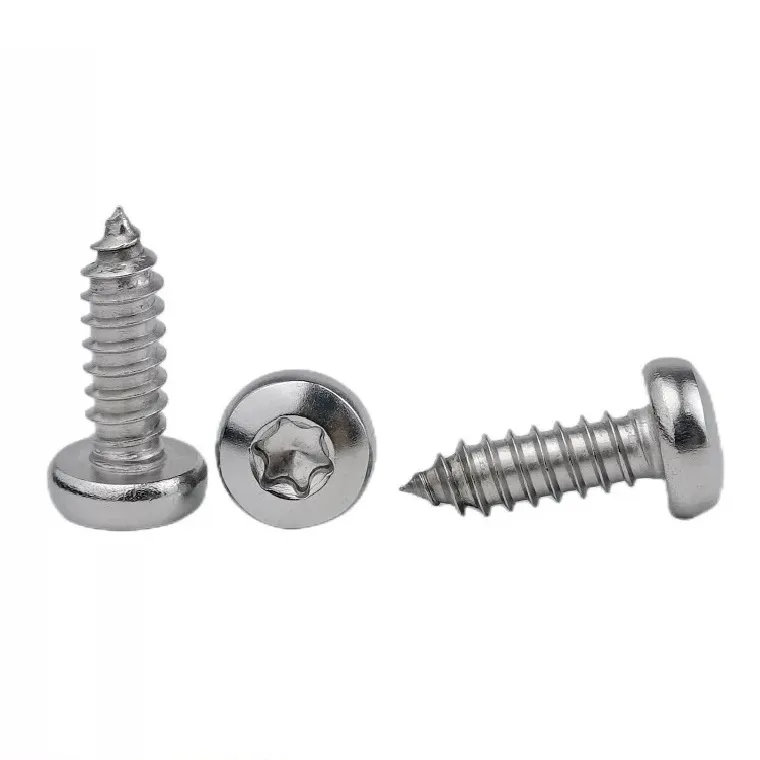

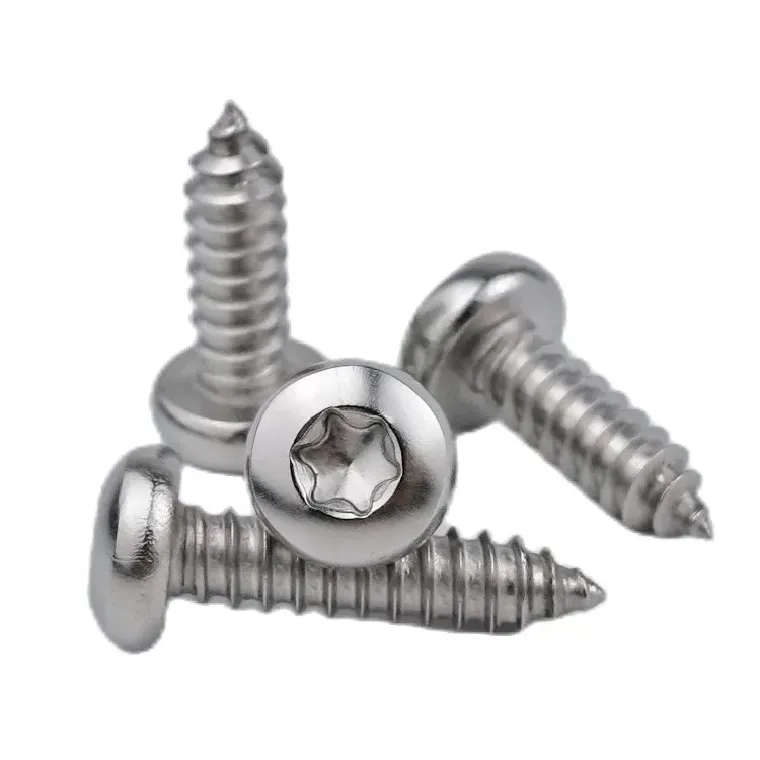

Pan Head Stainless Steel Torx Screws
The pan head design, with its low profile head and wide contact area, provides good load carrying capacity while pursuing a flat appearance. These stainless steel screws are widely used in applications that require a clean surface and reduce the impact of protrusions, such as the fixing of housings for electronic equipment and mechanical devices.
Round Head Stainless Steel Torx Screws
Round head screws with its rounded head design, not only beautiful and generous, but also effective in dispersing the fastening force, reduce the pressure concentration on the installation surface. They are often used for more decorative parts connection, such as furniture, car interiors, etc., not only to ensure the firmness of the connection, but also a delicate decorative piece.
Thin Head Stainless Steel Torx Screws
Thin head design is specially designed for space-constrained occasions, and its extremely low head height enables the ss screws to be easily installed in narrow or depth-constrained spaces. In highly integrated areas such as precision instruments and electronics, these screws play an irreplaceable role in ensuring the compact and efficient operation of equipment.
Countersunk Stainless Steel Torx Screws
Countersunk head screws have a head design that is completely sunk into the mounting hole, leaving only the flat part of the screw head exposed on the surface, which greatly enhances the overall aesthetics and flatness. They are widely used in applications where the surface needs to be kept flat and free of protrusions, such as window and door installation, decoration, etc., adding a touch of sophistication and elegance to the project.
Stainless Steel Pan Head with Washer Torx Screws
Combining the load-bearing capacity of pan head screws with the anti-loosening function of shims, these stainless fasteners perform particularly well in applications where additional anti-loosening measures are required.
The design of the shim not only increases the contact area, but also effectively disperses the fastening force to prevent the screw from loosening, which is especially suitable for vibration or shock work environment, such as machinery and equipment, the automotive industry and so on.
Button Head Stainless Steel Torx Screws
Stainless Steel Button Head Torx Screws are unique button head design is not only aesthetically pleasing, but also provides an even distribution of force and reduces damage to the contact surface during installation for scenarios that require a smooth surface finish.
Because of its excellent material and structural design, stainless steel button head Torx screws are widely used in aerospace, automotive manufacturing, marine industry, electronic equipment, medical equipment and high-end furniture manufacturing and other fields, is an indispensable component of the connection and fixation.
Stainless Steel Torx Screws With Pin
Stainless steel torx screws with pin are torx drive centers with a pin, which are stainless steel screws with anti-theft properties that require specific tools to remove. We call these screws stainless steel security screws.
Installation and removal can only be carried out by those who carry such a tool. This design effectively limits the operation of the product by unauthorized personnel and increases the safety of the product. At the same time, the use of a special installation tool ensures the accuracy and stability of the screws during the installation process
In conclusion, Torx stainless steel screws have become an indispensable and important component in modern industrial fasteners manufacturing with its diversified head design, unique anti-theft function and excellent material performance, which meets the fastening needs of different industries and different scenarios.
